hermetic door OR doors inported door from China manufacturer

Price:	1486.0~1660.0 USD
Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QTDM

Delivery Date: 25 days after TT deposit re...

Position: Interior

Brand Name: OWNIC

Door frame: aluminium alloy

Control modes: foot snsor/hand sensor/key ...

Packing: according to standard expor...

Product Material: Steel

Open Style: Sliding

Door body: aluminium alloy/galvanized ...

Motor: dunker motor

Powder coated colour: OWNIC standard colour/other...

Humanized barrier free design to provide the max convenience and safety to the patients and wheelbarrows.

1. Adopting German original imported brush motor of long life span, high efficiency and Maintenance free.

2.On-wall type and Built-in type available as options. On-wall type is easy for install; while Built-in type provide better integrity.

3.Unique designed track to guarantee high standard hermetization, which could reach the Highest Grade 8 Level of China national standard GB/T 7106-2008B.

4.15 mm vertical and 10 mm horizontal displacement to ensure air tightness.

5.Effective opening and closing system that minimize the air flux, which could isolate the air heat exchange and dust to maintain constant temperature, wetness and cleanness.

6.door plate:galvanized steel sheet powder coated
wall frame:alum alloy
operator cover: SS304 matt finish
7.Barrier Free

Specifications

Door Weight	Single 150KG Panel
Door Width	DW=1070 ~ 1570 MM
Clear Opening Width	W=2350 ~ 3350 MM
Opening Speed	250 ~ 550 MM/S
Closing Speed	250 ~ 550 MM/S
Delay For Opening	2 ~ 20 S
Door Openning Force	>= 500 N
Reverse Time	<= 1S
Power Voltage	AC220V ± 10%, 50 HZ
Work Temperature	-20°C ~ +50°C

Product Key Feature – Imported Dunker Motor

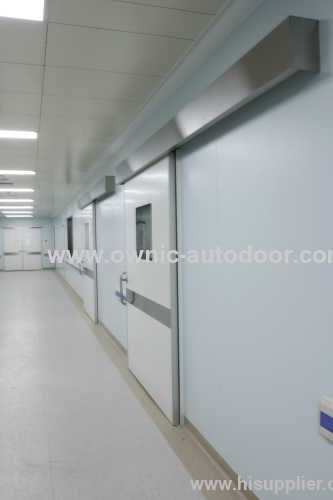

COMPREHENSIVE SOLUTIONS FOR HOSPITALHYGIENIC DOOR SYSTEM

WNIC medical door series offers a full range of hospital hygienic door system for integrated solutions. Different from the general building management, hospital systems require specific functions for different areas of public health care services to ensure the accessibility of the channel and path.

operating room door /corridor door / radiation door / ward door / manual door / specialty door
