autodoor syste mautodoor sensor from China manufacturer

Price:	1548.0~1815.0 USD
Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QTDM

Delivery Date: 25 days after TT deposit re...

Position: Interior

Door body: aluminium alloy/galvanized ...

control modes: foot sensor/hand sensor/key...

Packing: according to standard expor...

Product Material: Steel

Open Style: Automatic

Door fame: aluminium alloy/stainless s...

powder coated: OWNIC standard color/Other ...

Good hermetization that meet the highest grade 8 of national standards GB/T 7106-2008,. 1500*2100

1) The operator track rail of on-wall type is directly mounted onto the wall, easy and fast for installation

2) Adopting Ownic exclusive high-tech patents (National Patent No.: ZL200520014092.5 ZL 200520014093.X), good hermetization that meet the highest grade 8 of national standards GB/T 7106-2008, could effectively prevent cross infection and greatly enhanced the hygienic performance of hospitals.

3) Unique design of handles to reduce manual opening force when power off.

4) Operating quietly and fast, the sound insulation effect is good.

5) The features of environmental protection and energy saving is realized by the strong door plate and effective opening and closing system that minimize the air flux, so that the cold air and dust is isolated outside and the temperature and wetness inside room is well kept.

6) Humanized barrier free design to provide the max convenience and safety to the patients and wheelbarrows.

SPECIFICATIONS

Door Weight	Single 150KG Panel
Door Width	DW=1070 ~ 1570 MM
Clear Opening Width	W=2350 ~ 3350 MM
Opening Speed	250 ~ 550 MM/S
Closing Speed	250 ~ 550 MM/S
Delay For Opening	2 ~ 20 S
Door Openning Force	>= 500 N
Reverse Time	<= 1S
Power Voltage	AC220V ± 10%, 50 HZ
Work Temperature	-20°C ~ +50°C

4
STRUCTURE ILLUSTRATION

COMPREHENSIVE SOLUTIONS FOR HOSPITALHYGIENIC DOOR SYSTEM

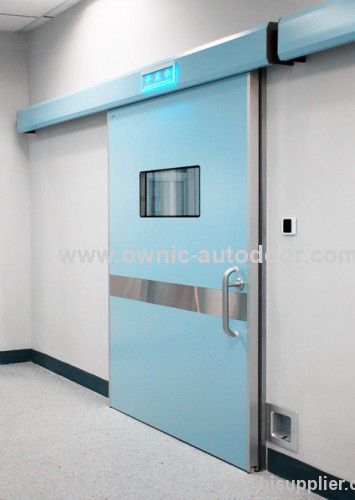

WNIC medical door series offers a full range of hospital hygienic door system for integrated solutions. Different from the general building management, hospital systems require specific functions for different areas of public health care services to ensure the accessibility of the channel and path.

operating room door /corridor door / radiation door / ward door / manual door / specialty door
